The Gelcoater

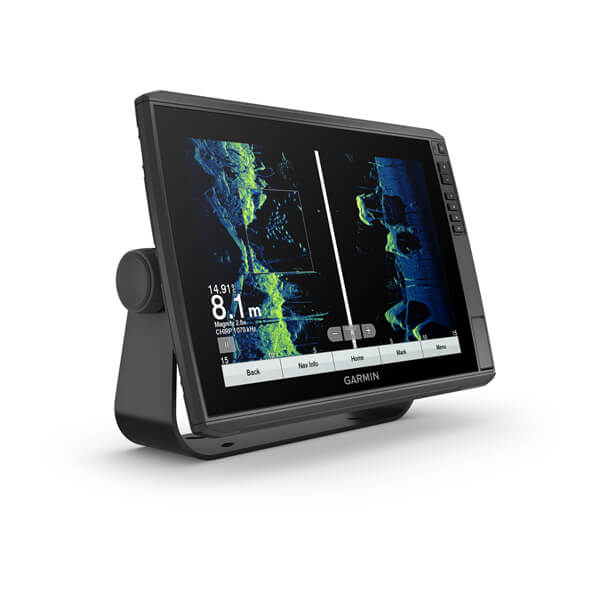

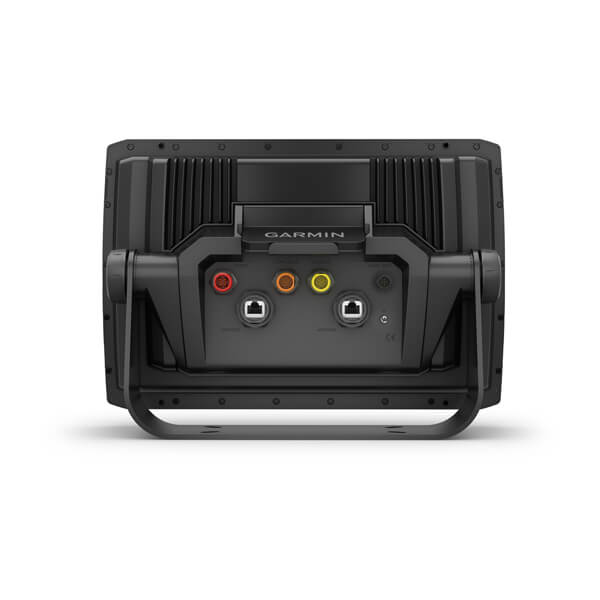

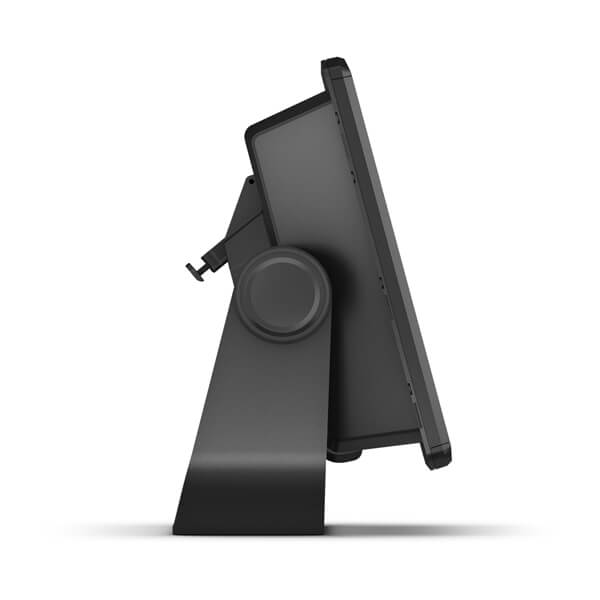

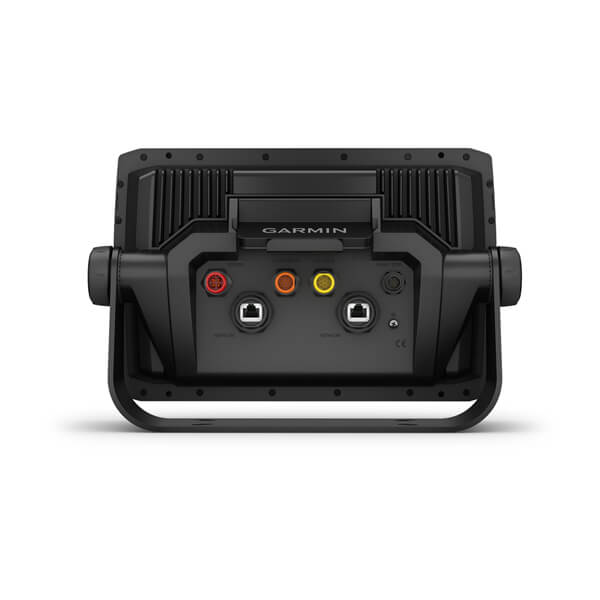

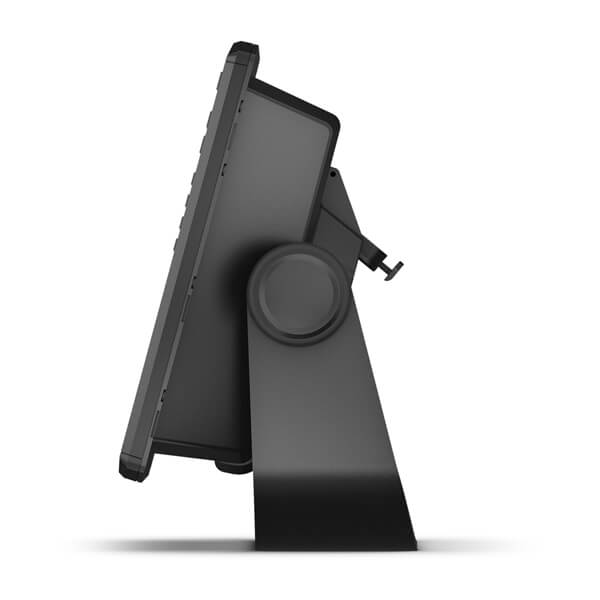

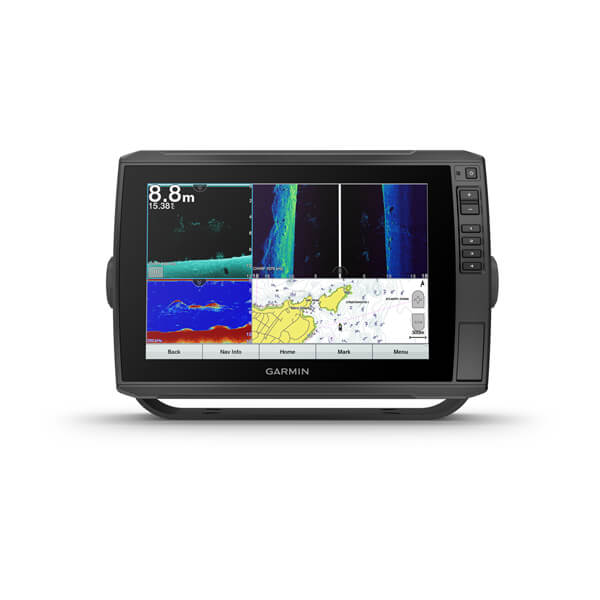

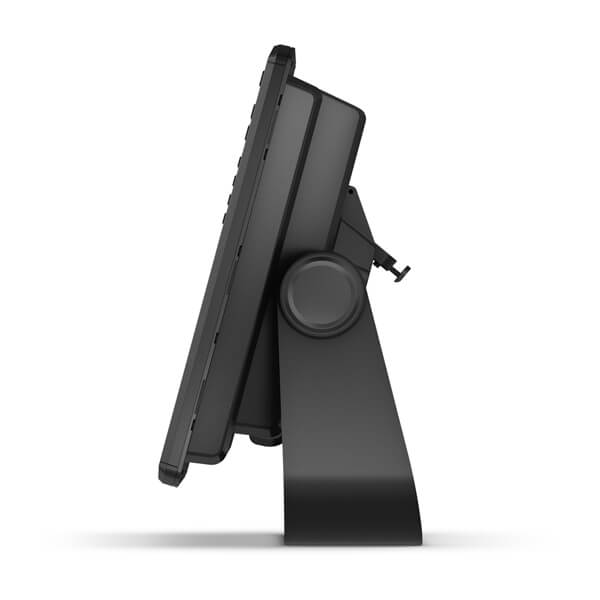

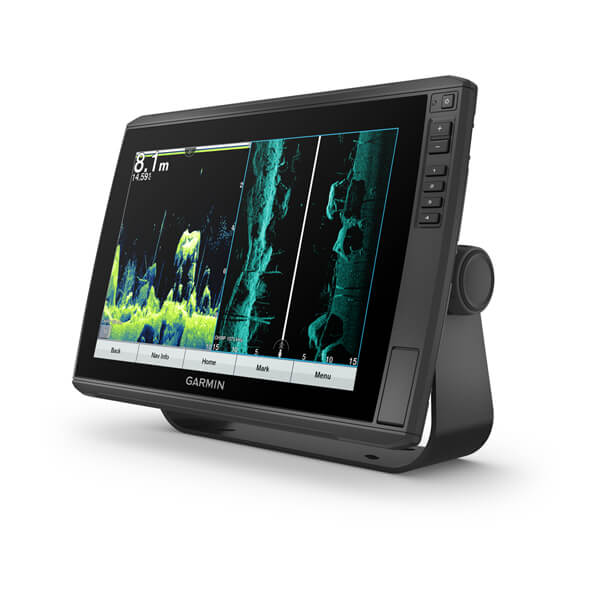

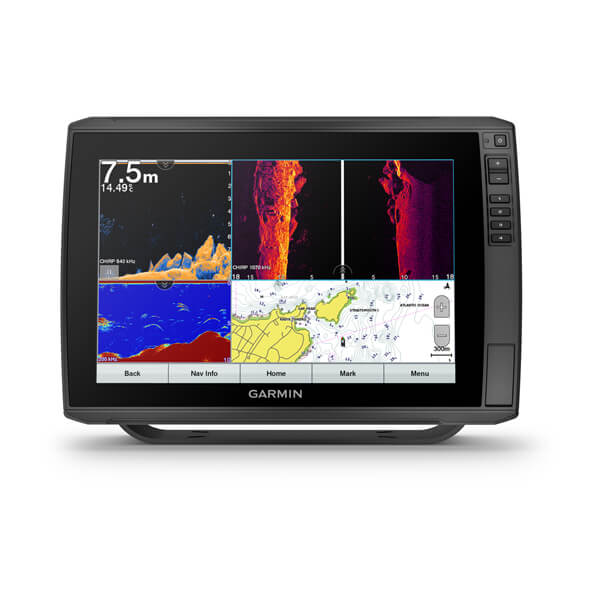

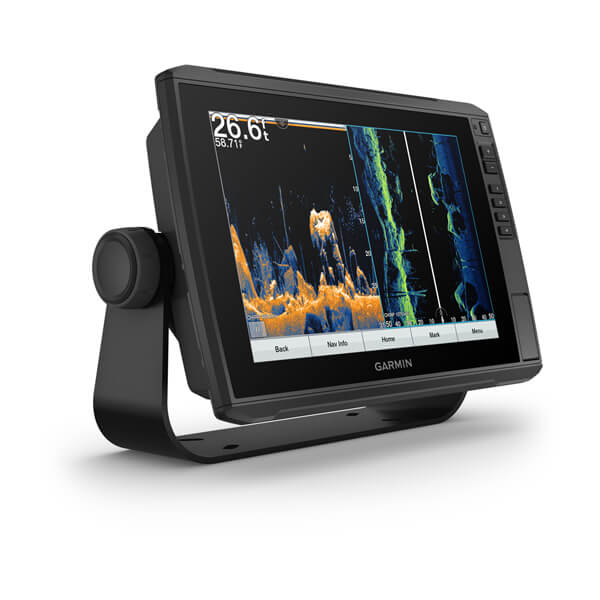

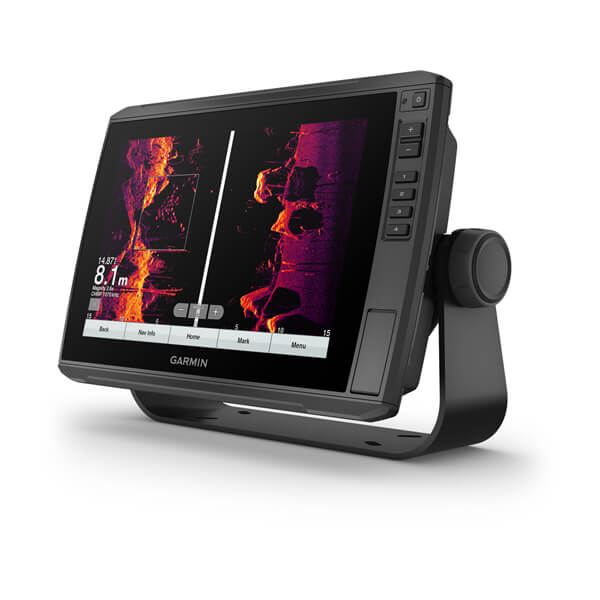

Garmin ECHOMAP Ultra Series 102sv/122sv GPS/Chartplotter/Sonar Combo

Garmin ECHOMAP Ultra Series 102sv/122sv GPS/Chartplotter/Sonar Combo

Regular price $3,199.99 USD
Regular price Sale price $3,199.99 USD
Sale Sold out
Shipping calculated at checkout.
Size

ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING

The sunlight-readable 10” or 12" touchscreen chartplotter/sonar combo features our worldwide basemap, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.

The keyed-assist 10” or 12" touchscreen puts fishfinding know-how at your fingertips.

See crisp images of structure and fish in stunning detail.

Navigate confidently with optional BlueChart® g3 charts and LakeVü g3 maps (sold separately).

Manage your marine experience from nearly anywhere with the ActiveCaptain® app1.

Connect your boat to share data, sonar and charts with your other compatible devices.

 Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.

Livescope Sonar Support

ECHOMAP Ultra 102sv and 126sv supports a variety of Garmin transducers, including Panoptix™ all-seeing sonar transducers and the Panoptix LiveScope™ LVS12 scanning sonar system (sold separately).

Built-In UHD Sonar

The included GT56 transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.

Vivid Color Palettes

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Add Charts

Experience unparalleled coverage and detail with optional BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics® data and Auto Guidance2 technology.

Quickdraw Contours

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app3.

Network Capable

If you have multiple compatible ECHOMAP Ultra 10” and 12” units or ECHOMAP Plus or UHD 7” and 9” units on your boat, you can share information — such as sonar, user data and charts — among them.

NMEA 2000 Network Compatibility

Connect to your compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast sensor — and more from one screen.

ActiveCaptain APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data and more1.

Force Trolling Motor Compatibility

Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks and more from the screen of your chartplotter.

Take It With You

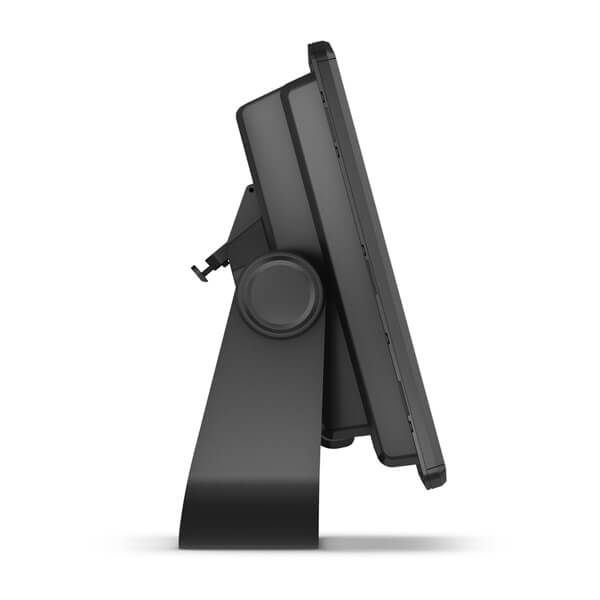

Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.

Engine Connectivity

Connect this chartplotter to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information at a glance. You may need additional hardware, so be sure to check with your engine manufacturer.

1 Requires the ActiveCaptain app on your compatible smartphone paired to the ECHOMAP Ultra 102sv or 122sv
2 Auto Guidance is for planning purposes only and does not replace safe navigation operations
3 Requires app on your compatible smartphone
4 In compliance with ISO standard 13342
Wi-Fi is a registered trademark of the Wi-Fi Alliance.


Specifications

General

PHYSICAL DIMENSIONS

-102sv (11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)),

-122sv (13.4" x 9.0" x 3.9" (341 x 229 x 98 mm))

DISPLAY SIZE

-102sv (8.5” x  5.4”; 10" diagonal  (21.7 cm x 13.6 cm; 25.4 cm diagonal))

-122sv (10.3” x  6.4”; 12.1" diagonal  (26.1 cm x 16.3 cm; 30.7 cm diagonal))

DISPLAY RESOLUTION 1280 x 800 pixels
DISPLAY TYPE WXGA IPS display
WEIGHT

-102sv =4.0 lbs (1.8 kg),

-122sv =5.5 lbs (2.5 kg)

WATER RATING IPX7
MOUNTING OPTIONS Bail or flush
POLARIZED SUPPORT
POWER CONSUMPTION 26 W
ANTENNA Internal or external over NMEA 2000
TRANSMIT POWER 600 W (RMS) / 4,000 W (peak to peak)
RECEIVER 10 Hz
GARMIN MARINE NEWORK PORTS 2 (large connector)

Maps and Memory

ACCEPTS DATA CARDS

2 microSD™ cards

WAYPOINTS

5000

TRACK LOG

50,000 points; 50 saved tracks

ROUTES

100

 Outdoor Recreation

 TIDE TABLES

Chartplotter Features

GARMIN SONAR CAPABLE

SUPPORTS AIS (TRACKS TARGET SHIPS POSITION)

SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO)

SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS

GCV™ BLACK BOX SONAR SUPPORT

ACTIVECAPTAIN COMPATIBLE

YES

 Sonar Features & Specifications

DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE

DUAL-BEAM (77/200 KHZ) SONAR CAPABLE

FREQUENCIES SUPPORTED

  • CHIRP High-Wide: 150-240 kHz
  • Ultra High-definition ClearVü: 800 kHz (760-880 kHz)
  • CHIRP ClearVü: 455 kHz (425-845 kHz)
  • Ultra High-definition SideVü: 1,200 kHz (1060-1170 kHz)

CLEARVÜ

Yes with CHIRP (built-in)

MAXIMUM DEPTH

2,300 ft @ 77 kHz, freshwater

1,100 ft @ 77 kHz, saltwater

(depth capacity is dependent on water bottom type and other water conditions)

BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)

WATER TEMPERATURE LOG AND GRAPH

SONAR RECORDING

SONAR HISTORY REWIND

 Connections

NMEA 2000® COMPATIBLE

TRANSDUCER PIN NUMBERS

1 – LVS sonar, 1 – 12 pin scanning sonar

NMEA 0183 INPUT PORTS

1

NMEA 0183 OUTPUT PORTS

1

WIRELESS CONNECTIVITY

YES

 In The Box

  • ECHOMAP Ultra 102sv or 122sv with worldwide basemap
  • GT56UHD-TM transducer
  • Power/data cable
  • Tilt mount with quick release cradle
  • Flush mount
  • Protective cover
  • Hardware
  • Documentation
View full details
