The Gelcoater

Garmin Striker Vivid Series Fishfinder 7cv With GT20-TM Transducer

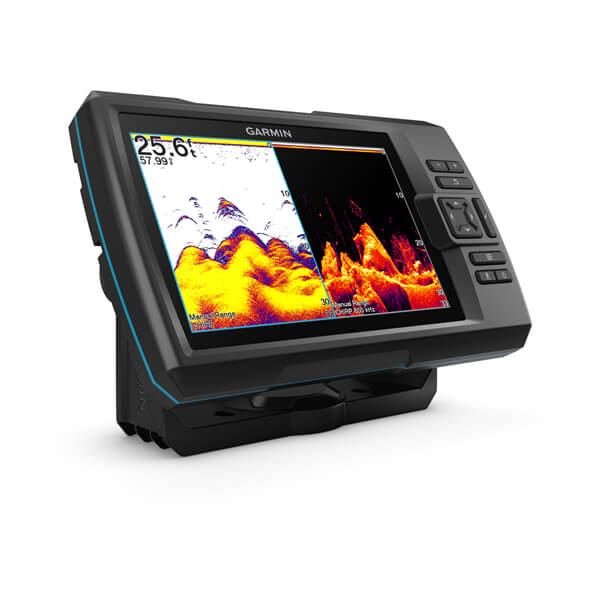

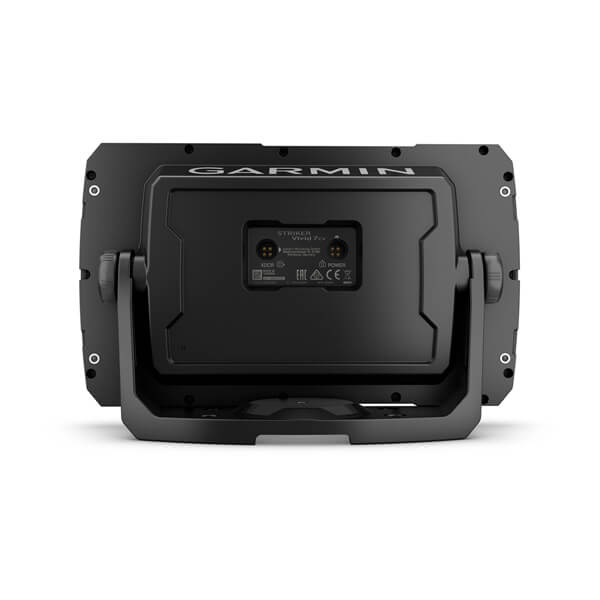

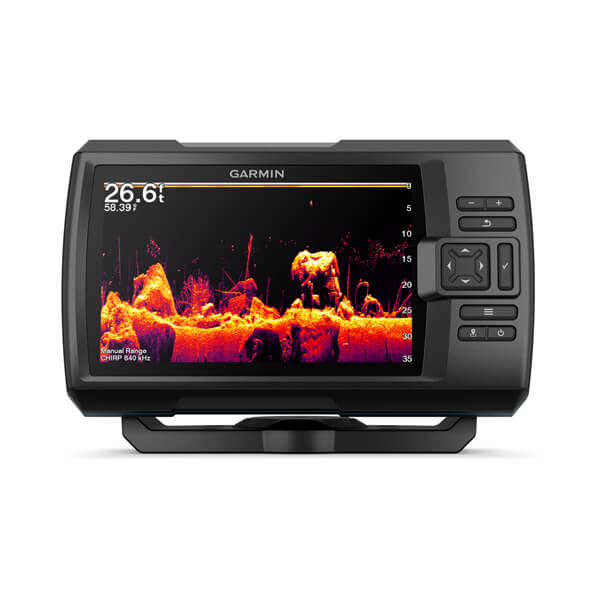

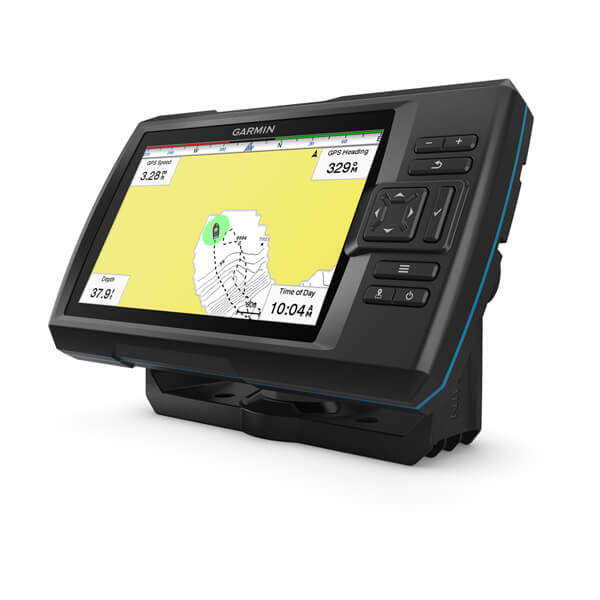

Garmin Striker Vivid Series Fishfinder 7cv With GT20-TM Transducer

Regular price $444.99 USD
Regular price Sale price $444.99 USD
Sale Sold out
Shipping calculated at checkout.
Size

THE CHOICE IS YOURS

See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 7cv fishfinder with transducer.

The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.

What a view. Use the included transducer to get CHIRP traditional and ClearVü sonars.

Never lose a hot spot again. Use waypoint marking to find your way back.

What’s under the water’s surface looks pretty good as 1' contours, just saying.

Wi-Fi® connection1 on land opens up a world of possibilities on the water.



Clear, Colorful Sonar

-Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 7” fishfinder.

Built-In Sonar

-Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar.

Waypoint Marking

-To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

High-Sensitivity GPS

Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

Quickdraw Contours

Nobody knows the waters you fish better than you. With the STRIKER Vivid 7cv fishfinder, you can store up to 2 million acres of maps with 1’ contours2.

Wi-Fi Connectivity

Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw Community.

Included Hardware

The STRIKER Vivid 7cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

1 Requires ActiveCaptain app on your compatible smartphone paired to the STRIKER Vivid 7cv fishfinder; see Garmin.com/ble
2 Does not contain detailed mapping. Content is user-generated
Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Specifications

General

PHYSICAL DIMENSIONS 9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm)
DISPLAY RESOLUTION 800 x 480 pixels
DISPLAY TYPE WVGA color
WEIGHT

1.7 lbs (0.8 kg)

WATER RATING IPX7
TRANSMIT POWER 500 W (RMS)


Sonar Features & Specifications

DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE
FREQUENCIES SUPPORTED

-Traditional: 50/77/200 kHz

-CHIRP (mid and high)

-ClearVü 260/455/800 kHz

BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
WATER TEMPERATURE LOG AND GRAPH



Fishfinder Features

SPLIT-SCREEN ZOOM
ULTRASCROLL® (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS)
FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)
AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS)
ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)
A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)
WATER TEMPERATURE SENSOR INCLUDED



Additional

ADDITIONAL
  • One 4-pin transducer port
  • Wireless Connectivity: Yes
  • Quickdraw Contours
  • Integrated GPS
  • Mark Waypoints
  • Course over Ground (COG)
  • Current draw @ 12V: 0.55A
  • Waypoints: 5,000
  • Track Log: 50,000 points; 50 saved tracks
  • Routes: 100



In The Box

  • STRIKER Vivid 7cv fishfinder
  • GT20-TM transducer (if selected)
  • Power/data cable
  • Tilt/swivel mount
  • Hardware
  • Garmin bumper sticker
  • Documentation
View full details
